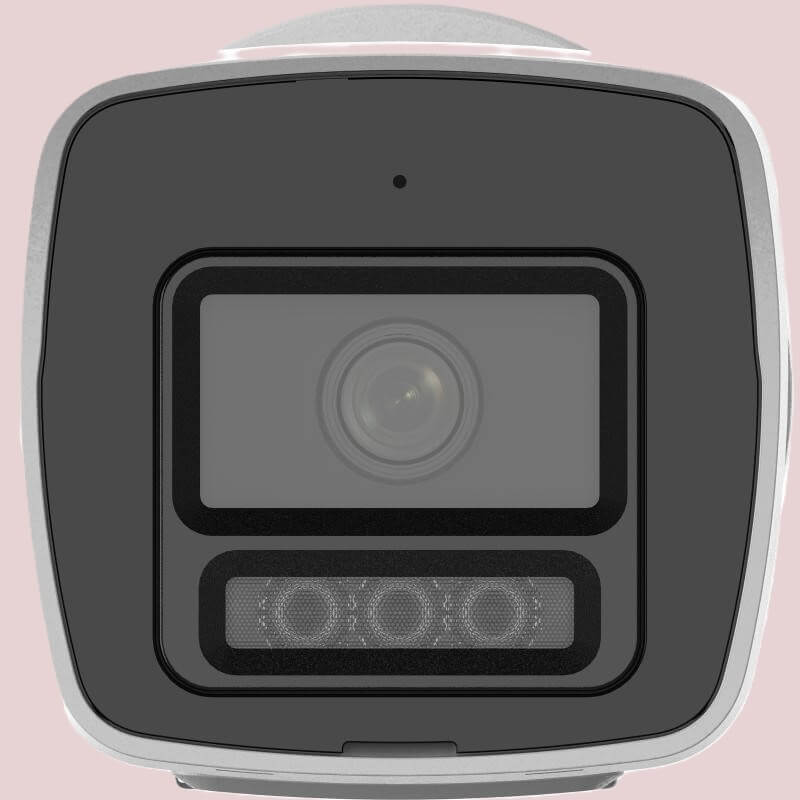

Quick overview
- High quality imaging with 2 MP resolution
- 24/7 colorful imaging
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range cover
- -SL/-SRB: Provide real-time security via built-in two-way audio and strobe light alarm
- Efficient H.265+ compression technology
- -F: Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP67)
Specification
- Camera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129°
4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.0
- Depth of Field
2.8 mm: 1.2 m to ∞
4 mm: 1.3 m to ∞
- DORI
- DORI
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio TypeMono sound
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- ClientiVMS-4200;Hik-Connect
- Web Browser
Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
- Image
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask4 programmable rectangular privacy masks
- Transducer
- Transducer TypeNA
- Detection AngleNA
- Detection RangeNA
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
-LIU、LIU/S(L)(RB)：NA
-LIUF、LIUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes,1 built-in microphone
- Built-in Speaker
-LIU、-LIUF: NA
-LIU/S(L)(RB)、-LIUF/S(L)(RB): Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 98 dB
- AudioNA
- Alarm NA
- Reset Key
-LIU、LIU/S(L)(RB)：NA
-LIUF、LIUF/S(L)(RB)：YES
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
- LinkageUpload to memory card/FTP,notify surveillance center,send email,trigger capture
- General
- Power
-LIU: 12 VDC ± 25%, 0.55 A, max. 6.6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.0 W,
-LIUF: 12 VDC ± 25%, 0.57 A, max. 6.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W,
-LIU/S(L)(RB), -LIUF/S(L)(RB): 12 VDC ± 25%, 0.72 A, max. 8.9 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 10.5 W
- MaterialFront cover: metal, body: plastic, bracket: plastic
- Dimension
-LIU, -LIUF: 69.1 mm × 66.9 mm × 172.9 mm (2.7″ × 2.6\” × 6.8\”)
-LIU/S(L)(RB), -LIUF/S(L)(RB): 69.1 mm × 67.4 mm × 179 mm (2.7 × 2.7\” × 7.1\”)”
- Package Dimension216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.7″)
- Weight
-LIU: Approx. 330 g (0.73 lb.)
-LIUF: Approx. 335 g (0.74 lb.)
-LIU(F)/SL: Approx. 450 g (0.99 lb.)
-LIU(F)/SRB: Approx. 450 g (0.99 lb.)
- With Package Weight
-LIU: Approx. 445 g (0.98 lb.)
-LIUF: Approx. 450 g (0.99 lb.)
-LIU(F)/SL: Approx. 480 g (1.06 lb.)
-LIU(F)/SRB: Approx. 480 g (1.06 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
- General FunctionHeartbeat,mirror,flash log,password reset via email,password protection,anti-banding
- Flashing Light
-LIU, -LIUF: NA
-LIU(F)/SL: White Light
-LIU(F)/SRB: Red and Blue Light
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety
CB: IEC 62368-1: 2014+A11
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
